Aluminum foil

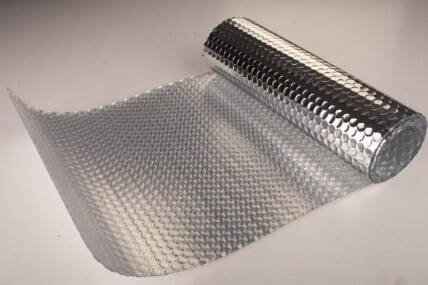

Bubble Aluminum Foil

BROADFOIL Bubble Aluminum Foil is an economical solution for a wide range of industrial, manufacturing and consumer applications, such as for industrial sheds, commercial buildings, home insulation, under wood or laminated flooring, roof insulation, carpet underlay and construction

Technical Data of BROADFOIL Bubble Aluminum Foil

Material Structure	AL+Bubble+AL	AL+Woven Cloth+Bubble + Colored Foil	AL+ Woven Cloth + Bubble + Woven Cloth+AL
Bubble Size	10mm*4mm	20mm* 7mm	20mm*7mm
(Diameter*Heihht)
Bubble Weight	0.13kg/m2	0.3kg/m2	0.3kg/m2
Roll Width	1.2 m (customized)	1.2 m (customized)	1.2 m (customized)
Thickness	3.5mm	6.5mm	6.5mm
Weight	256 g/m2	425 g/m2	500 g/m2
Emissivity	0.03-0.04 COEF	0.03-0.04 COEF	0.03-0.04 COEF
Thermal Conductivity	0.034W/Mº	0.032W/Mº	0.032W/Mº
Apparent Density	85 kg/m3	70.7 kg/m3	83 kg/m3
Reflectivity	96-97%	96-97%	96-97%
Water Vapour	0.013 g/m2Kpa	0.012 g/m2Kpa	0.012 g/m2Kpa
Transmission
Corrosion	Doesn't generate	Doesn't generate	Doesn't generate
Tensile Strength(MD)	16.98 Mpa	16.85 Mpa	35.87 Mpa
Tensile Strength(TD)	16.5 Mpa	15.19 Mpa	28.02 Mpa

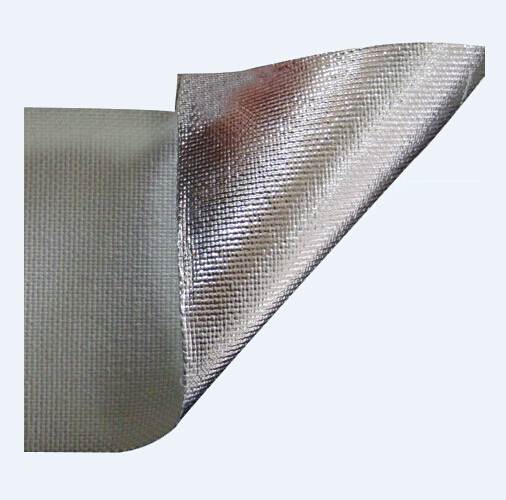

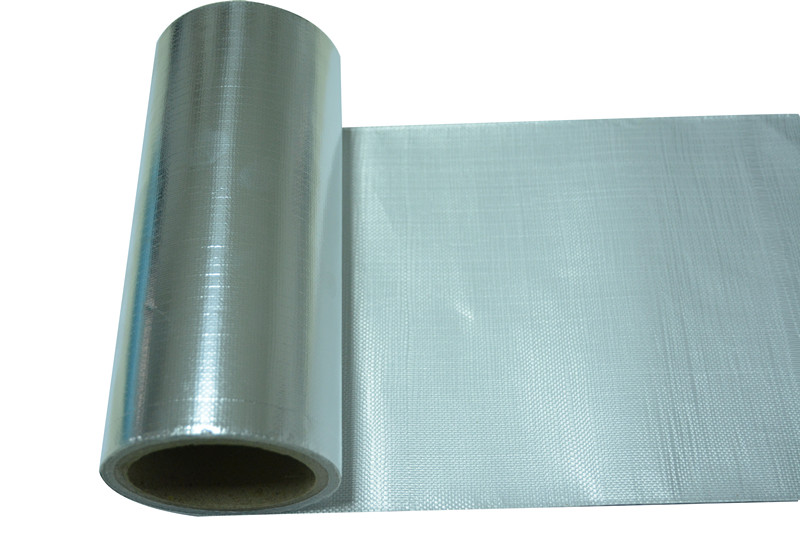

Fiberglass Cloth Aluminum Foil

BROADFOIL Aluminum foil laminated fiberglass cloth usually used for housetop or floor heat insulation or auto engine or construction heat insulation.

Wide Supply Scope

Spec	Supply Scope
Roll Length	no less than 50m (Special seizes available upon request)
Roll width	30mm-1200mm
Core I.D.	3"(76mm+/-1)

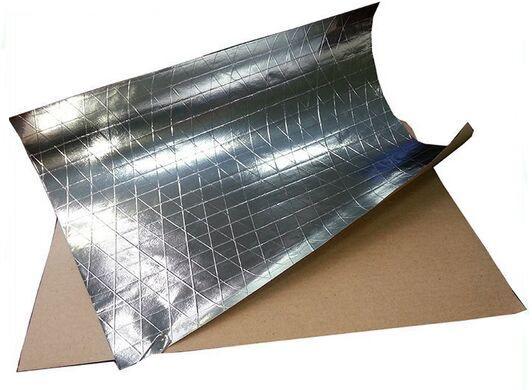

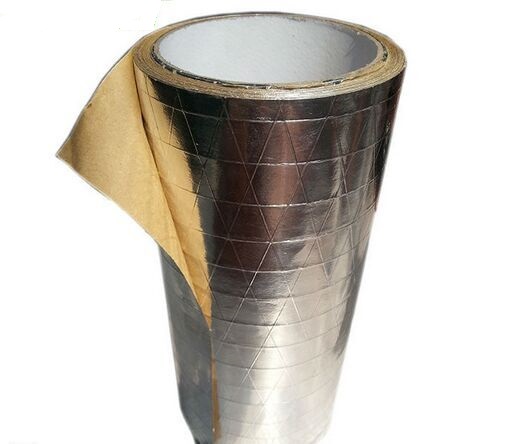

FSK Facing Aluminum Foil

BROADFOIL FSK facing aluminum foil insulation are usually used as facing for glass wool insulation, rockwool, rubber foam etc. Also used under roof decking, under attic rafters, over existing attic thermal insulation, in floors, walls and crawl spaces, and in industrial and commercial buildings to block radiant heat coming into house through the roof during the summer and retain indoor heat generated during in winter.

Specifications of BROADFOIL FSK Facing Aluminum Foil

Item	Specfications
Model	BR-FSK-C
Appearance	Side as the silver, while on the surface of the kraft paper laminating, reflecting slightly above the rate
Structure	(7 micron) foil/adhesive/tri-way fiberglass srim/kraft/PE
width	1.0-1.3m
Roll length	50-2000m

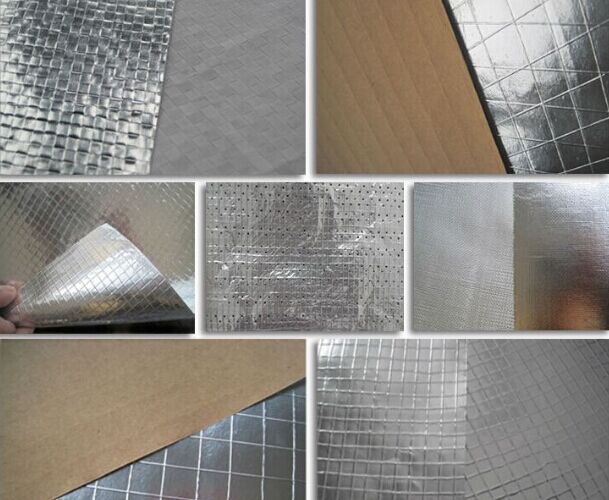

Other Aluminum Foil

Applications of BROADFOIL Aluminum Foil Facing

1. HVAC Ducting

2. Building Wrapping

3. Clay tile roofing

4. Metal Roofing

5. Boiler/Furnace/Steam/Sauna Room Insulation

6. Cold Room Insulation

7. Hot/Chilled water or steam pipe

8. Thermal Tank
