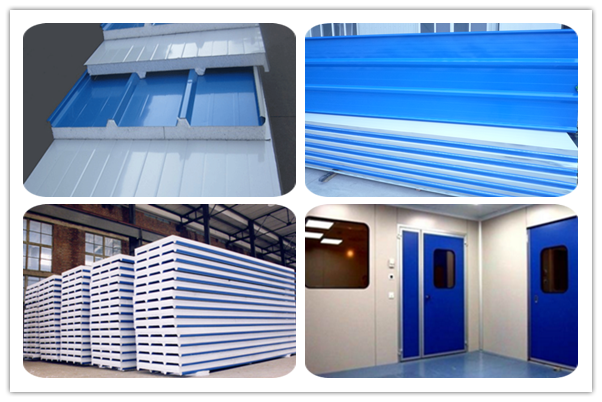

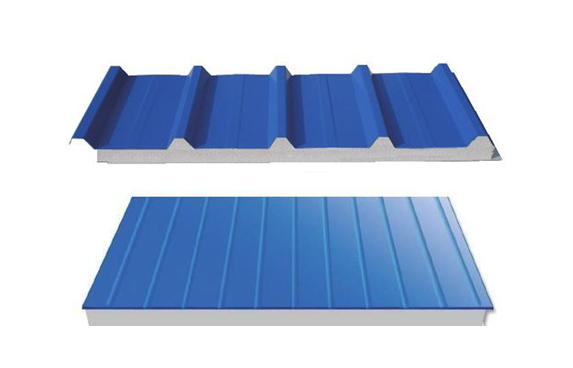

BROAD Sandwich Panel is currently a common building material products, has two layers of metal panels and middle polymer insulated core repression. Glass wool board is processed by putting the thermosetting binder into glass wool, they have effect of energy-saving insulation, sound-controlling and improving the indoor air quality.
Spec |
Supply Scope |
Length |
customized(< 12m due to transport) |
Width |
wall: 950/1150mm, roof: 960mm/1050mm |
Thickness |
0.2-0.8mm |
Density |
≥30kg/m3 |
1. High load intensity, low water absorption, long service life
2. Lightweight, non-toxic, odorless and eco-friendly
3. Great temperature-resistance: no deformation from -110°C to 120 °C
4. The installation is convenient and flexible
Number |
Item |
Unit |
National Standard |
1 |
Density |
kg/m3 |
≥30 |
2 |
Water absorption for 24 hours |
|
≤1 |
3 |
thermal conductivity |
w/m.k |
≤0.044 |
4 |
compressive strength |
kpa |
≥200 |
5 |
Limits of fire resistance |
|
B1 |
Packing: Fully applicable for exporting seaworthy packing of horizontal type, OEM service can be offered.
Delivery time: our powerful production capacity ensures shortest delivery time, normally 5-7 days is enough.
