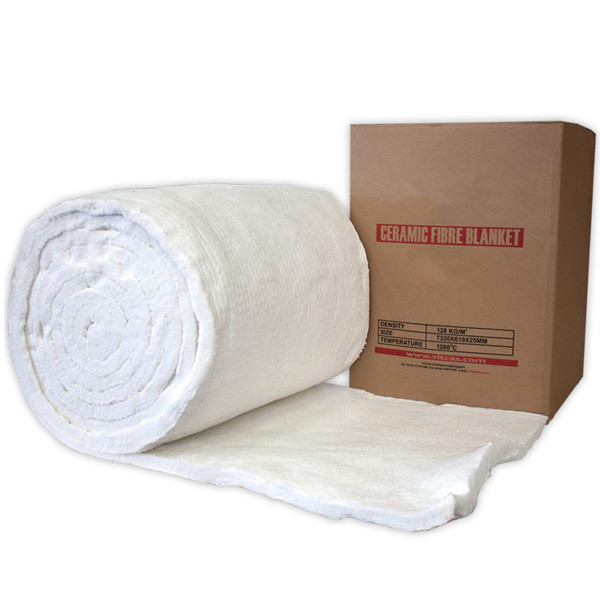

BROAD Ceramic Fiber Blanket is made from long special ceramic fiber, formed by special strong double surface needling, without any binder, increasing inter-weaving and tensile strength, so that ceramic fiber blanket own good stability under a high working temperature.
Spec |
Supply Scope |
Length |
14400mm, 7660mm, 7200mm, 3600mm |
Width |
600mm, 610mm, 1220mm |
Thickness |
10mm, 20mm, 25mm, 30mm, 40mm, 50mm |
Density |
80 kg/m3, 96 kg/m3,128 kg/m3, 160kg/m3 |
1. Excellent thermal stability.
2. Excellent chemistry quality.
3. Resistance to burning.
4. Low thermal conductivity.
5. Low heat storage.
6. Good obstructing voice and mechanism strength.
7. Low shrinkage.
8. Good springiness for fibers9. Convenient producing and installing.
Type |
Common |
Standard |
High Purity |
High Aluminium |
Zirconia |
||
Classification temperature (°C) |
1100 |
1260 |
1260 |
1360 |
1400 |
||
Working Temperature (°C) |
< 1000 |
1050 |
1100 |
1260 |
1350 |
||
Color |
White |
Pure white |
Pure white |
Pure white |
Pure white |
||
Density (kg/m3) |
96/128/160 |
96/128/160 |
96/128/160 |
128/160 |
128/160 |
||
Shrinkage on heating (%) |
-4 |
-3 |
-3 |
-3 |
-3 |
||
(24 hours, |
(1000°C) |
(1000°C) |
(1100°C) |
(1250°C) |
(1350°C) |
||
density as 128/m3) |
|
|
|
|
|
||
Thermal conductivity |
0.09(400°C) |
0.09(400°C) |
0.09(400°C) |
0.12(600°C) |
0.16(800°C) |
||
by different temperature (w/m.k) |
0.16(800°C) |
0.16(800°C) |
0.16(800°C) |
0.20(1000°C) |
0.20(1000°C) |
||
(density as 128kg/m3) |
|
|
0.20(1000°C) |
|
|
||
Tensile strength (MPa) |
0.04 |
0.04 |
0.04 |
0.04 |
0.04 |
||
(density as 128kg/m3) |
|
|
|
|
|
||
Chemical composition |
AL2O3 |
44 |
46 |
47-49 |
52-55 |
39-40 |
|
(%) |
AL2O3+SiO2 |
96 |
97 |
99 |
99 |
- |
|
|
AL2O3+SiO2+ZrO2 |
- |
- |
- |
- |
99 |
|
|
ZrO2 |
- |
- |
- |
- |
15-17 |
|
|
Fe2O3 |
<1.2 |
<1.0 |
0.2 |
0.2 |
0.2 |
|
|
Na2O+K2O |
≤0.5 |
≤0.5 |
0.2 |
0.2 |
0.2 |
|
Size (mm) |
14400/7200/4500/3600×1220/610×6-50; Other sizes can be available. |
|
|||||
Packing: Plastic bag inside, and woven bag or carton outside. Different colors and OEM are available!
Delivery time: our powerful production capacity ensures shortest delivery time,
5-7 days is enough.
