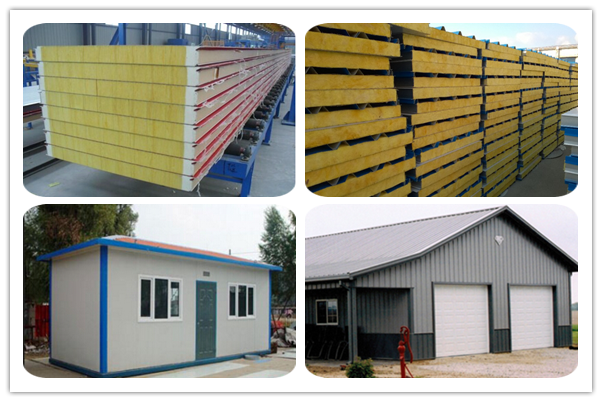

BROAD Sandwich Panel is currently a common building material products, has two layers of metal panels and middle polymer insulated core repression. Glass wool board is processed by putting the thermosetting binder into glass wool, they have effect of energy-saving insulation, sound-controlling and improving the indoor air quality.
Spec |
Supply Scope |
Length |
customized(< 12m due to transport) |
Width |
wall: 950/1150mm, roof: 960mm/1050mm |
Thickness |
0.2-0.8mm |
Density |
40-90kg/m3 |
1. Corrosion resistance of acid and alkali
2. Weather resistance :Anti-UV
3. Fire resistance
4. Green and environment friendly
5. Fast installation and easy transportation
6. Toughness
7. Good using temperature: -30°C to 70 °C
8. Heat insulation and Sound insulation
Number |
Item |
Unit |
National Standard |
1 |
Density |
kg/m3 |
40-90 |
2 |
Specific gravities |
Kg |
10.2-17.7 |
3 |
Resistances of heat-transfer process |
% w/m.k |
≤0.044 |
4 |
Sound deadening |
db |
21.5 |
5 |
Limits of fire resistance |
|
Grade A incombustible |
Packing: Packing: Fully applicable for exporting seaworthy packing of horizontal type, OEM service can be offered.
Delivery time: our powerful production capacity ensures shortest delivery time, normally 5-7 days is enough.
