Sandwich Panel

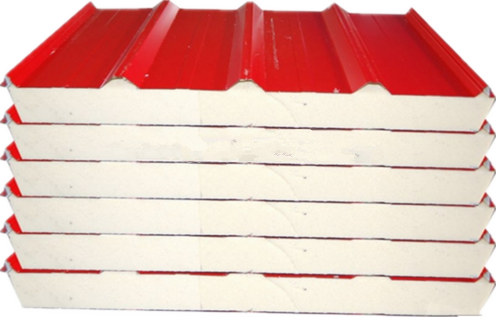

BROAD EPS Sandwich Panel

BROAD Sandwich Panel is currently a common building material products, has two layers of metal panels and middle polymer insulated core repression. EPS board is composed of a containing volatile liquid foaming agent can be made of polystyrene beads, the heating preforming in mould heating and forming a white object. The structural characteristic is micro obturator.

Wide Supply Scope:

Spec	Supply Scope
Length	customized(< 12m due to transport)
Width	wall: 950/1150mm, roof: 960mm/1050mm
Thickness	0.2-0.8mm
Density	8-20kg/m3

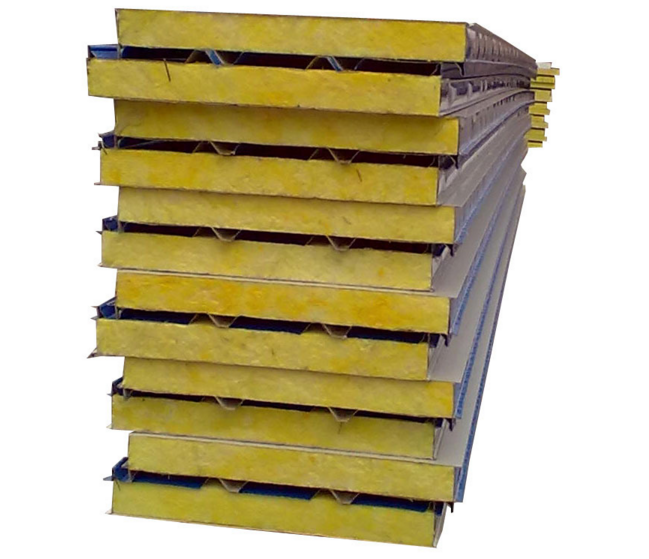

BROAD Glass Wool Sandwich Panel

BROAD Sandwich Panel is currently a common building material products, has two layers of metal panels and middle polymer insulated core repression. Glass wool board is processed by putting the thermosetting binder into glass wool, they have effect of energy-saving insulation, sound-controlling and improving the indoor air quality.

Wide Supply Scope:

Spec	Supply Scope
Length	customized(< 12m due to transport)
Width	wall: 950/1150mm, roof: 960mm/1050mm
Thickness	0.2-0.8mm
Density	40-90kg/m3

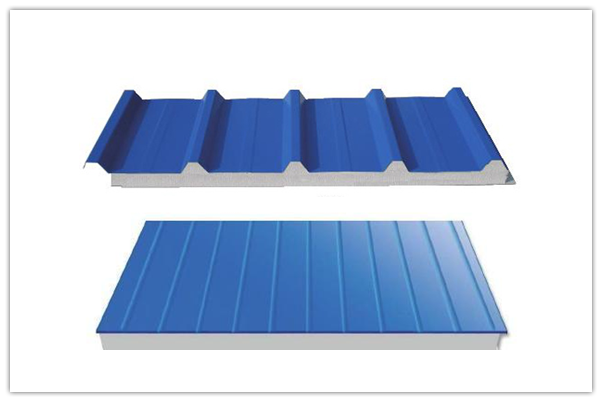

BROAD PU Sandwich Panel

BROAD Sandwich Panel is currently a common building material products, has two layers of metal panels and middle polymer insulated core repression. Glass wool board is processed by putting the thermosetting binder into glass wool, they have effect of energy-saving insulation, sound-controlling and improving the indoor air quality.

Wide Supply Scope:

Spec	Supply Scope
Length	customized(< 12m due to transport)
Width	wall: 950/1150mm, roof: 960mm/1050mm
Thickness	0.2-0.8mm
Density	≥30kg/m3

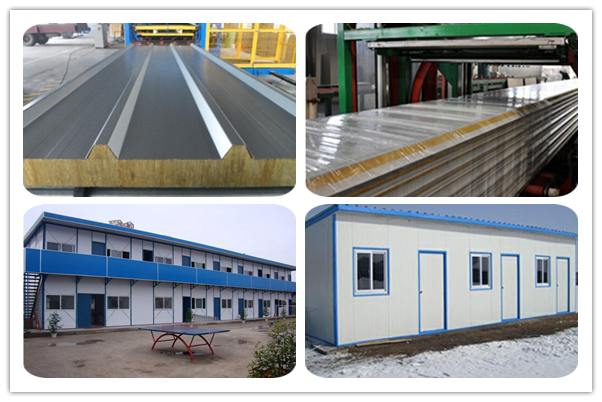

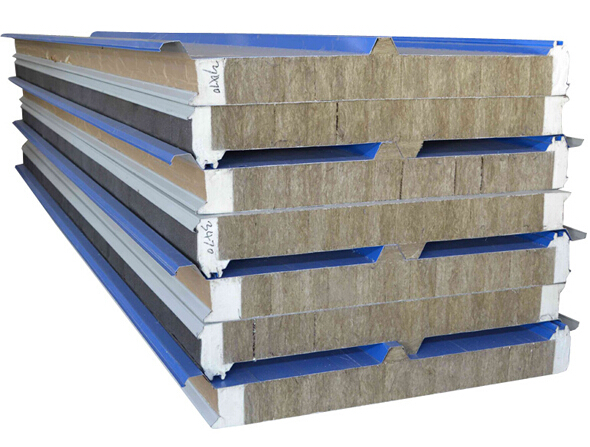

BROAD Rock Wool Sandwich Panel

ROAD Sandwich Panel is currently a common building material products, has two layers of metal panels and middle polymer insulated core repression. Rock wool with its excellent insulation characteristics is the main energy saving materials internationally recognized "fifth conventional energy".

Wide Supply Scope:

Spec	Supply Scope
Length	customized(< 12m due to transport)
Width	wall: 950/1150mm, roof: 960mm/1050mm
Thickness	0.2-0.8mm
Density	80-160kg/m3
