Facing

Aluminum foil

Bubble Aluminum Foil

BROADFOIL Bubble Aluminum Foil is an economical solution for a wide range of industrial, manufacturing and consumer applications, such as for industrial sheds, commercial buildings, home insulation, under wood or laminated flooring, roof insulation, carpet underlay and construction.

Technical Data of BROADFOIL Bubble Aluminum Foil

Material Structure	AL+Bubble+AL	AL+Woven Cloth+Bubble + Colored Foil	AL+ Woven Cloth + Bubble + Woven Cloth+AL
Bubble Size	10mm*4mm	20mm* 7mm	20mm*7mm
(Diameter*Heihht)
Bubble Weight	0.13kg/m2	0.3kg/m2	0.3kg/m2
Roll Width	1.2 m (customized)	1.2 m (customized)	1.2 m (customized)
Thickness	3.5mm	6.5mm	6.5mm
Weight	256 g/m2	425 g/m2	500 g/m2
Emissivity	0.03-0.04 COEF	0.03-0.04 COEF	0.03-0.04 COEF
Thermal Conductivity	0.034W/Mº	0.032W/Mº	0.032W/Mº
Apparent Density	85 kg/m3	70.7 kg/m3	83 kg/m3
Reflectivity	96-97%	96-97%	96-97%
Water Vapour	0.013 g/m2Kpa	0.012 g/m2Kpa	0.012 g/m2Kpa
Transmission
Corrosion	Doesn't generate	Doesn't generate	Doesn't generate
Tensile Strength(MD)	16.98 Mpa	16.85 Mpa	35.87 Mpa
Tensile Strength(TD)	16.5 Mpa	15.19 Mpa	28.02 Mpa

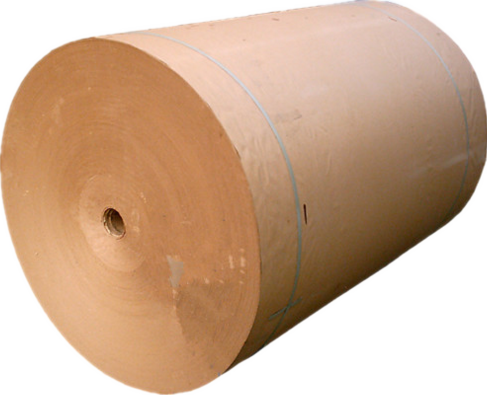

Kraft Facing Insulation

BROAD kraft paper Facing are mainly used as facing for glass wool insulation, rockwool, rubber foam etc and Suitable for warehouse, factory, supermarket, gym and office etc. General purpose product. It can provides enhanced installed appearance.

Features of BROAD Kraft Facing Insulation

1. Increases existing insulation performance

2. Inhibits mold and fungi growth

3. Installs quickly

4. Made with highly reflective radiant barriers

5. Reflects up to 97% of radiant heat

6. Unrolls and cuts easily

7. Dense scrim increasing the strength

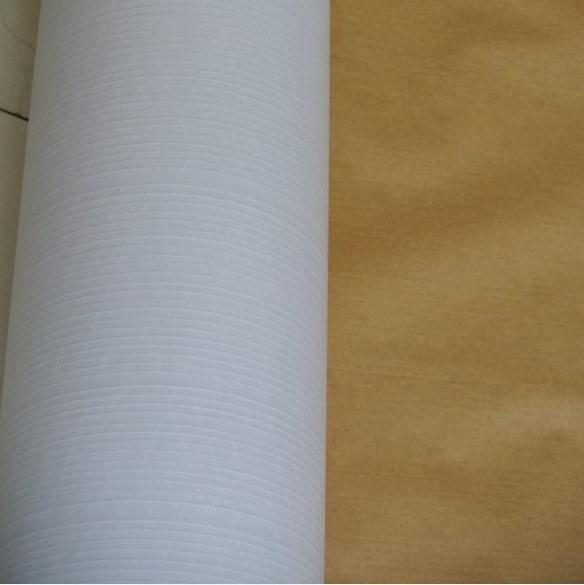

PVC Facing Insulation

BROAD PVC Facing Insulation provides excellent insulation: resist types of heat transfer from conduction, convection, and radiation. The side of metabolized white polypropylene forms an effective barrier against moisture, air currents and vapors. It is economical solution in many fields and mainly used as facing for glass wool insulation, rock wool ,rubber foam etc .

Features of BROAD PVC Facing Insulation

1. Sound, corrosion, light, vapor can be prevented effectively

2. For keeping warm air duct, sound insulation and absorb, moisture-proof floor, etc

3. Eco-friendly, temperature resistant for construction, etc

4. High tensile strength

5. Excellent water vapor resistance

6. OEM is available. GMC excellent supplier



Aluminum Foil Tape

FSK Aluminum Foil Tape

BROAD FSK Aluminum Foil Tape made from special high quality aluminum foil, coated with aggressive solvent-based acrylic adhesive /acrylic adhesive/ synthetic rubber, which provide strong stickiness, good peel strength, high tensile strength and great aging resistance.

Wide Supply Scope

Spec	Supply Scope
Roll Length	27m, 30m, 45m, 50m
Roll width	48mm, 50mm, 60mm, 72mm, 75mm, 96mm, 100mm
Foil thickness	18μ, 22μ, 26μ
Log roll	1.2 x 45m, 1.2 x 50m
Jumbo roll	1.2 x 1200m, 1.2 x 1000m
