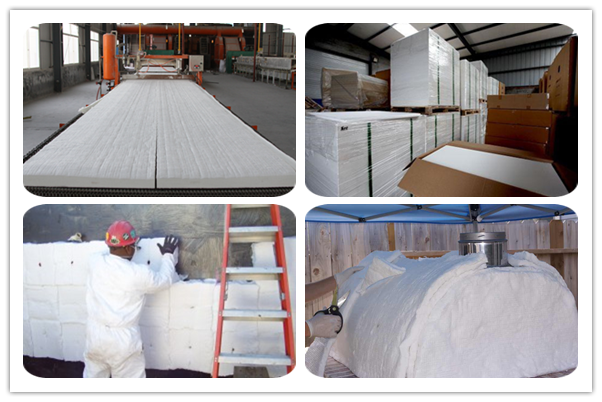

BROAD Ceramic Fiber Board is made through automation control and continuous production process, with a host of features such as precise size, by adding a small amount of high-purity alumina silicate fiber binders, good flatness, high compressive strength, lightweight, excellent thermal shock resistance and anti-stripping.
Spec |
Supply Scope |
Length |
900mm, 1000mm, 1100mm, 1200mm |
Width |
600mm, 600mm, 700mm, 1000mm |
Thickness |
6-50mm, 6-50mm, 10-50mm, 20-50mm |
Description |
1000 NATI |
1260 NATI |
1425 NATI |
1600 NATI |
1800 NATI |
|
Ceramic Fiber |
Ceramic Fiber |
Ceramic Fiber |
Ceramic Fiber |
Ceramic Fiber |
|
Board |
Board |
Board |
Board |
Board |
Classification temperature( ℃) |
1000 |
1260 |
1425 |
1600 |
1800 |
Density (Kg/ m3) |
250-350 |
250-350 |
250-350 |
300-350 |
300-500 |
Linear shrinkage(%) |
1.3 (900) |
1.1 (1100) |
1.6 (1200) |
1.2 (1400) |
1.0(1600) |
( ℃*24 h ) |
|
|
|
|
|
Rupture Strength (kg/ cm2) |
5 |
5 |
5 |
6 |
6 |
Shot content (>212 um ) (%) |
8 |
8 |
8 |
8 |
8 |
Thermal conductivity rate Kcal/mh℃ (W/mK) ,ASTM C201 |
|
||||
|
250 kg/ m3 |
250 kg/ m3 |
250kg/ m3 |
300kg/ m3 |
350kg/ m3 |
Average 400℃ |
0.08 |
0.09 |
|
|
|
Average 600℃ |
0.13 |
0.14 |
0.1 |
0.12 |
|
Average 800℃ |
0.2 |
0.18 |
0.14 |
0.16 |
|
Average 1000℃ |
|
|
0.2 |
0.21 |
0.211 |
Average 1200℃ |
|
|
|
|
0.232 |
Chemical composition |
|
|
|
|
|
Al2O3 |
38 |
42 |
50 |
68 |
85 |
SiO2 +Al2O3 |
96 |
98 |
99 |
99.5 |
99.8 |
Fe2O3 |
0.2 |
0.2 |
0.2 |
~ |
~ |
Dimension( mm/ pcs) |
1200*1000*25 / 50 ; |
||||
|
1000*600*6 / 12.5 / 20 / 25 / 30 / 40 / 50 |
Characteristics |
Precise fatnesses size and excellent flatness, easy to install and to be cutted |
Good fiber distribution |
|
Low heat capacity and low thermal conductivity |
|
Excellent chemical stability and thermal stability |
|
Good thermal shock resistance |
|
High compressive strength |
|
Non-brittle material, good elasticity |
|
Applications |
|
Heat insulation of high temperature and high heat equipments |
|
Boilers and heater combustion chamber |
|
Heat resistance for fireplace |
|
Heat insulation, fire proof and sound insulation of aerospace, ship building industry |
