Rock Wool

Rock Wool Board Insulation

BROADWOOL rock wool board is made of select fine basalt as major materials, which is pulled into 4-7µ non-continuous fibers. We totally have 3 producing lines rock wool insulation and our rock wool has been exported to over 80 countries with superior quality and competitive price.

Wide Supply Scope:

Spec	Supply Scope
Length	1200mm/ 1000mm
Width	600mm/ 630mm
Thickness	30mm-150mm
Density	50kg-200kg/m3

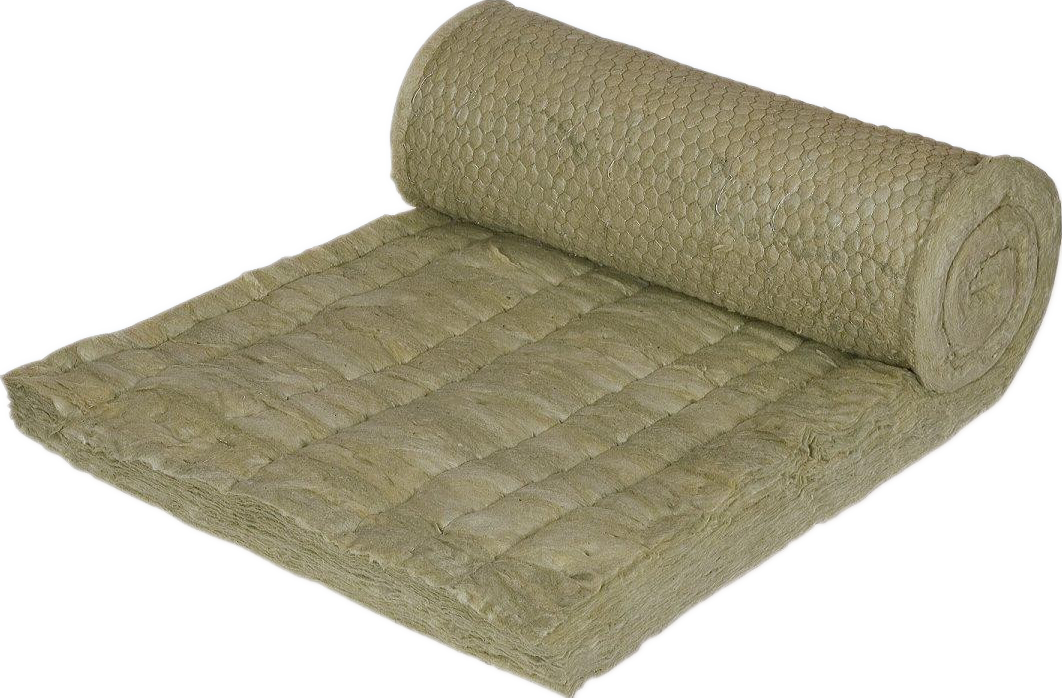

Rock Wool Blanket Insulation

BROADWOOL rock wool blanket is made of select fine basalt as major materials. We totally have 3 producing lines Rock wool insulation and our rock wool has been exported to over 80 countries with superior quality and competitive price.

Wide Supply Scope:

Spec	Supply Scope
Length	3-5m
Width	0.6-1m
Thickness	30mm- 100mm
Density	50-100kg/m3
Facing	Wire mesh, Aluminum foil, Fiberglass cloth

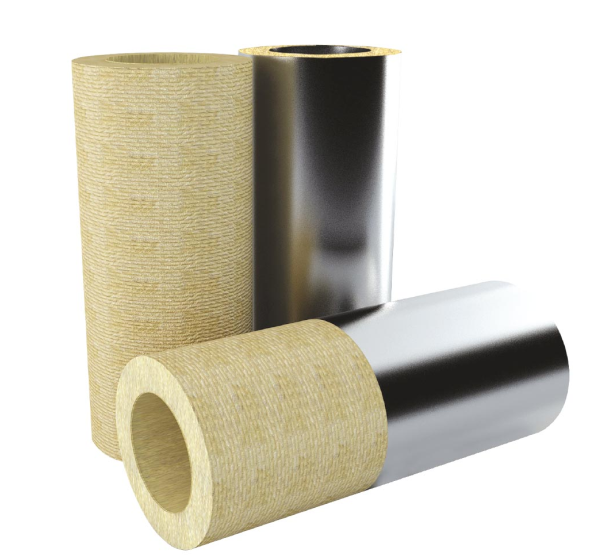

Rock Wool Pipe Insulation

Rock wool insulation materials are widely used in construction wall, roof, industrial furnace, oven, heat-treating equipment, storage tank, storage groove, power house, flue, petrifaction and oil refining equipment and all kinds of keeping-warm and heat insulation pipelines.

Wide Supply Scope

Spec	Supply Scope
Length	1000mm
Thickness	10~150mm
Inner Diameter	10~650mm
Density	40~120kg/m3

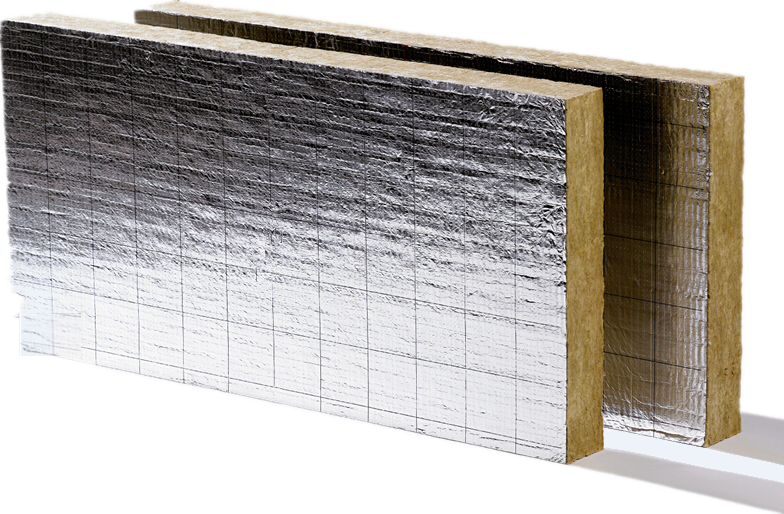

Rock Wool with Aluminum Foil

BROADWOOL rock wool is made of select fine basalt as major materials which is pulled into 4-7µ non-continuous fibers. We totally have 3 producing lines Rock wool insulation and our rock wool has been exported over 80 countries with superior quality and competitive price.
Aluminum foil is the most frequently-used facing on rock woo insulation and increase insulation effect greatly.

Technical Data Sheet of BROADWOOL Rock Wool

item	unit	index	experimental method
density	Kg/m3	60-110kg/m3	GB5480.3
density allowable deviation	%	¡À10
average value of fiber	um	4-7	GB5480.4
slag ball content (granule diameter)	%	6	GB5480.5
volume water absorption	%	2	GB/GB16401-1996
heat absorption	%	1	GB5480.7
moisture resistivity	%	98	B10299-88
shrinkage temperature of heat load		650	GB11835-1998
organic content	%	4%	GB11835-1998
compressive strength (10% compressibility)	kPa	40	GB/T13480-92
peeling strength	kPa	14	DIN52274
incombustibility	--	A¼¶	GB5465
thermal conductivity (70 )	W/mk	0.041	GB10294-88
acidity coefficient	¡¡	1.5	¡¡
binder content	%	3	¡¡
