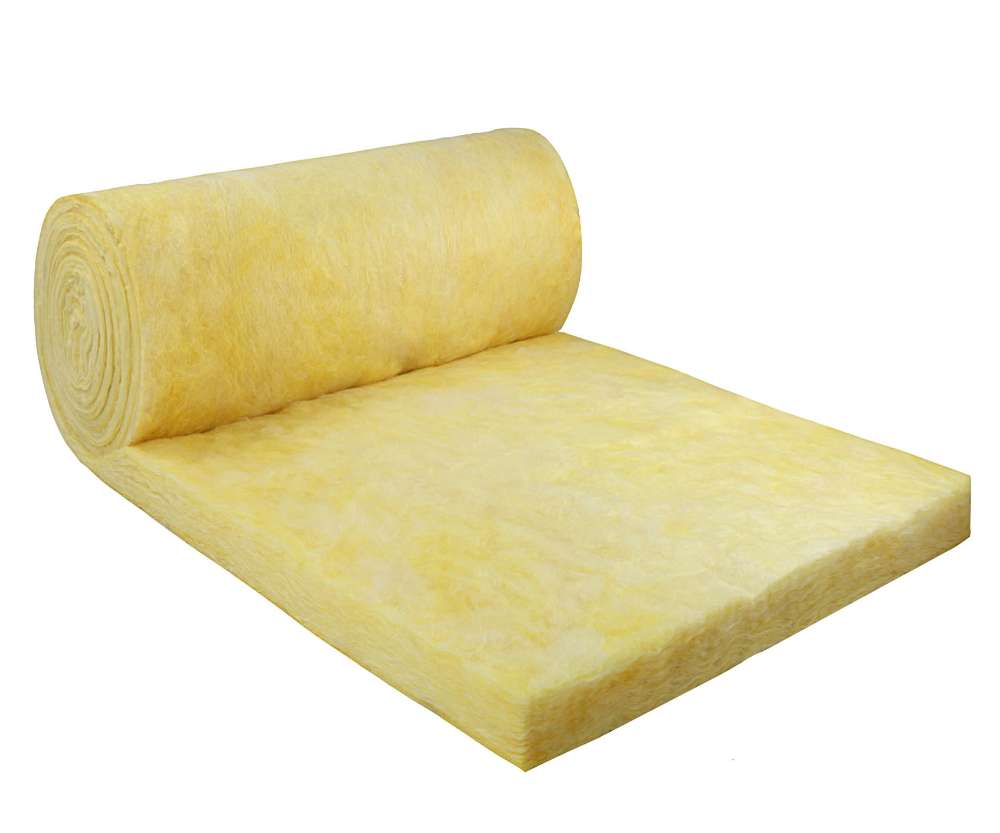

Glass Wool

Glass Wool Blanket

BROAD Glass Wool Blanket Insulation

BROAD glass wool blanket is made of pure non-colour glass flat board as raw material, which comes directly from flat glass factories, we do not use cycled glass wool. We totally have 8 producing lines for Glass wool with capacity over 1,800,000 tons per year.
Our products have passed CE, ISO, A1, BV and AS/NZ certificates and we have strict quality management system. With excellent quality, competitive price, prompt delivery, we have exported our glass wool blanket to over 80 countries.

Wide Supply Scope:

Spec	Supply Scope
Length	5-30m
Width	0.4m-1.2m
Thickness	25-200mm
Density	10-50kg/m3

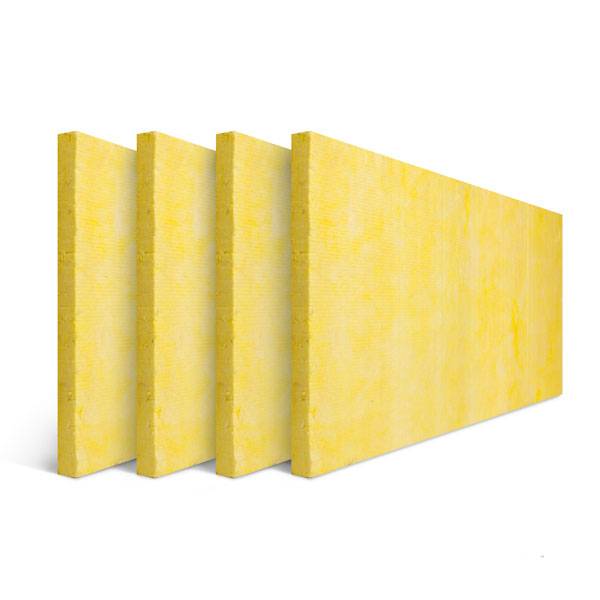

Glass Wool Board

BROAD Glass Wool Board Insulation

BROAD glass wool board are made from superfine glass wool felt with addition of phenol resin cementing agent forming shapes through solidification under pressure and heating．The surface may be coated with PVC film or aluminum foil. These products are characterized by their light weight，high deadening coefficient，remarkable fire resistance and stable chemical property.

Wide Supply Scope:

Spec	Supply Scope
Length	1.2m
Width	0.6m, 1.2m, 2.4m
Thickness	25-200mm
Density	24-100kg／m3



Glass Wool Pipe

BROAD Glass Wool Pipe Insulation

BROAD Glass wool pipe is specially used the heat insulation of in all sorts of pipes (such as refrigeration, hot water and steam) system, working well under the environment with a temperature less than 454°C, exposing or covered. With excellent quality, competitive price, prompt delivery, we have exported our glass wool pipe to over 80 countries.

Technical Data Sheet of BROAD Glass Wool Pipe Insulation:

Number	Item	Unit	National Standard	Company Product	Remark
1	Density	kg/m3		10-48	GB483.3-85
2	Avearage Fiber diameter	μm	≤8.0	5.5	GB5480.4-85
3	Hygroscopicity	%	≥98	98.2	GB10299-88
4	Thermal Conductivity	w/m.k	≤0.042	0.033	GB10294-88
5	Noncombustibility	0	Noncombustible	Noncombustible (A)	GB5464-85
6	Sound Absorption Coefficient	0	0	1.03 product reverberation method 24kg/m3 2000HZ	GBJ47-83
7	Highest usage Temperature	°C	≤480	480	GB11835-89
