BROADFOIL Bubble Aluminum Foil

BROADFOIL Bubble Aluminum Foil is an economical solution for a wide range of industrial, manufacturing and consumer applications, such as for industrial sheds, commercial buildings, home insulation, under wood or laminated flooring, roof insulation, carpet underlay and construction.

Specifications of BROADFOIL Bubble Aluminum Foil

1. Alu +Bubble+Alu

2. Alu+Bubble+Bubble+Alu

3. Alu+Bubble+EPE(XPE) foam+Alu

4. Alu+Bubble+EPE(XPE) foam+Bubble+Alu

5. Alu+Woven fabric+Bubble+Woven+Alu

6. Alu+Non-woven fabric+Bubble+Alu

7. Antiglare coating+Alu+Bubble+Alu

8. Customized

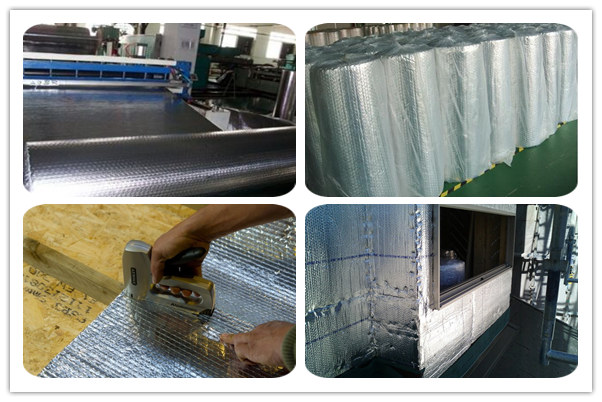

Applications of BROADFOIL Bubble Aluminum Foil

BROADFOIL Bubble aluminum foil is widely used in industrial sheds, commercial buildings, home insulation, under wood or laminated flooring, roof insulation, carpet underlay and construction.

Technical Data of BROADFOIL Bubble Aluminum Foil

Material Structure	AL+Bubble+AL	AL+Woven Cloth+Bubble + Colored Foil	AL+ Woven Cloth + Bubble + Woven Cloth+AL
Bubble Size	10mm*4mm	20mm* 7mm	20mm*7mm
(Diameter*Heihht)
Bubble Weight	0.13kg/m2	0.3kg/m2	0.3kg/m2
Roll Width	1.2 m (customized)	1.2 m (customized)	1.2 m (customized)
Thickness	3.5mm	6.5mm	6.5mm
Weight	256 g/m2	425 g/m2	500 g/m2
Emissivity	0.03-0.04 COEF	0.03-0.04 COEF	0.03-0.04 COEF
Thermal Conductivity	0.034W/Mº	0.032W/Mº	0.032W/Mº
Apparent Density	85 kg/m3	70.7 kg/m3	83 kg/m3
Reflectivity	96-97%	96-97%	96-97%
Water Vapour	0.013 g/m2Kpa	0.012 g/m2Kpa	0.012 g/m2Kpa
Transmission
Corrosion	Doesn't generate	Doesn't generate	Doesn't generate
Tensile Strength(MD)	16.98 Mpa	16.85 Mpa	35.87 Mpa
Tensile Strength(TD)	16.5 Mpa	15.19 Mpa	28.02 Mpa

Packing & Delivery of BROADFOIL Bubble Aluminum Foil

Packing:  In plastic bags Packing or according to client's requirement.
Delivery time: Our powerful production capacity will ensure timely delivery time, normal 5-7 days is enough!
