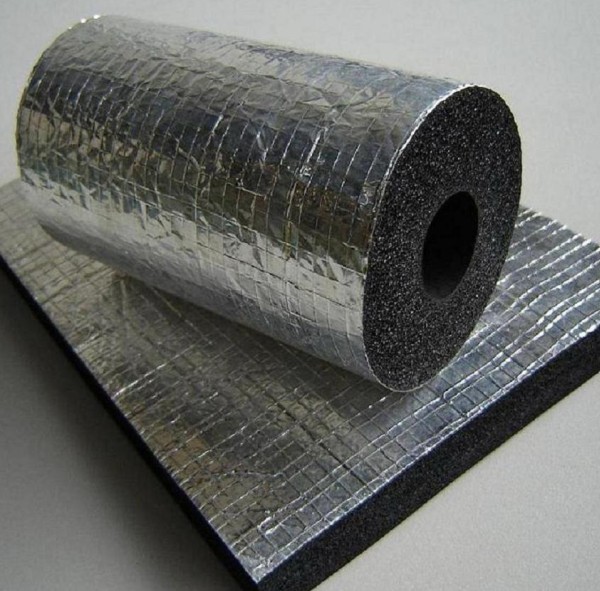

BROADFLEX Rubber Foam Tube with Aluminum Foil

We totally have 5 producing lines for rubber foam with capacity over 1,800,000 tons per year. With excellent quality, competitive price, prompt delivery, we have exported our rubber foam to over 80 countries.

BROADFLEX Rubber Foam Tube with Aluminum Foil

Wide Supply Scope

Thickness



in(mm)

3/8",1/2",3/4",1",1-1/4",1-1/2",2"

(9,13,19,25,32,40 and 50mm)

Inner diameter

in(mm)

1/4"ID to 6"IPS(ID 6 to 168mm)

Length

ft(m)

6.82(2m), 6(1.83m)

BROADFLEX Rubber Foam Tube with Aluminum Foil

Packing & Delivery of BROADFLEX Rubber Foam Tube with Aluminum Foil

Packing:  In exported standard cartons, OEM service can be offered.
Delivery time: Our powerful production capacity will ensure timely delivery time, normal  5-7 days is enough!

Technical data of Rubber Foam Tube

Property

Unit

Value

Test Method

Temperature range

°F (°C)

-297~220(-183~105)

-

Density range

Ibs./ft3(kg/m3)

3.0~6.0(48~96)

ASTM D 1622 or D1667

Thermal conductivity

75 °F mean T (24 °C)

Btu·in./h·ft2·°F(W/mK)

0.27(0.039)

ASTM C177 or C518



90 °F mean T (32 °C)

Btu·in./h·ft2·°F(W/mK)

0.276(0.040)



Water vapor permeability

Perm-in (kg/m ·s ·pa)

0.08(1.16 X 10-13)

ASTM E96 procedure A DIN 52615

Flame spread and smoke developed index



Class 1 & Class 0

BS476 part 7 & part 6





V0

UL94

Water absorption, by volume

%

0.2

ASTM C209

Mold growth

-

Meet requirement

UL181

Bacterial resistance



Meet requirement

ASTM G22

Fungi resistance



Meet requirement

ASTM G21/C1338

Resistance to agent chemical

-

Stable performance to agent chemical

-

Ozone resistance

-

good

ASTM D1149

Aging resistance

-

150 hours, slight wrinkles, no cracks, holes or distortion

-

Technical Data Sheet of Aluminum foil

Physucal Properties

Test  Method

Values (English)

Values(Metric)

Basis Weight

Scale

25.5lbs/1000 ft2

125g/m2

Tensile Strength

GB/T12914-1991

22.5lbs/inch(MD)

3.79 kn/m(MD)





13.9lbs/inch(XD)

2.31 kn/m(XD)

Bursting Strength

GB/T454-2002

36 lbs/psi

248 kpa

Water-resitant

23 °C 24h

No phenomenon of layered

No phenomenon of layered

Low-temperature resistant

-40 °C 1h

No phenomenon of layered

No phenomenon of layered

High temperature

116 °C 4h

No leakage phenomenon

No leakage phenomenon

resistant







Thickness

Micrometer

0.0058 inch

150 micron
