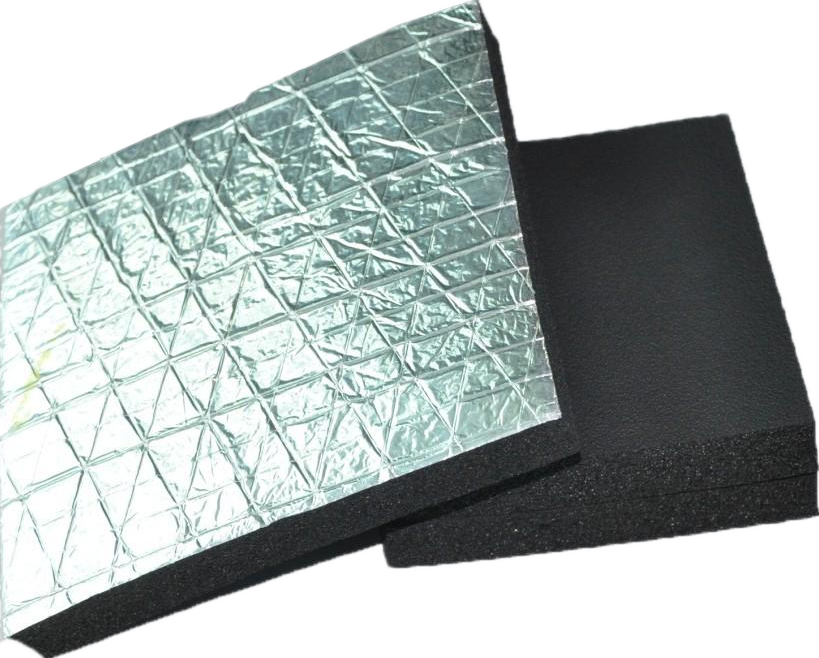

BROADFLEX rubber foam have passed BS476, FM, SGS, UL, ASTM certificates, covered by a thin layer of aluminum foil will increase insulation effect greatly.
Spec |
Supply Scope |
Length |
8m-30m |
Width |
1m/1.2m |
Thickness |
6mm-30mm |
Density |
55-70kg/m3 |
Packing: In PP and PE plastic bags ,OEM service can be offered.
Delivery time: our powerful production capacity will ensure timely delivery time, normal
5-7 days is enough!
Property |
Unit |
Value |
Test Method |
|
Temperature range |
°F (°C) |
-297~220(-183~105) |
- |
|
Density range |
Ibs./ft3(kg/m3) |
3.0~6.0(48~96) |
ASTM D 1622 or D1667 |
|
Thermal conductivity |
75 °F mean T (24 °C) |
Btu·in./h·ft2·°F |
0.27(0.039) |
ASTM C177 or C518 |
|
90 °F mean T (32 °C) |
Btu·in./h·ft2·°F |
0.276(0.040) |
|
Water vapor permeability |
Perm-in (kg/m ·s ·pa) |
0.08(1.16 X 10-13) |
ASTM E96 procedure A DIN 52615 |
|
Flame spread and smoke developed index |
|
Class 1 & Class 0 |
BS476 part 7 & part 6 |
|
|
|
V0 |
UL94 |
|
Water absorption, by volume |
% |
0.2 |
ASTM C209 |
|
Mold growth |
- |
Meet requirement |
UL181 |
|
Bacterial resistance |
|
Meet requirement |
ASTM G22 |
|
Fungi resistance |
|
Meet requirement |
ASTM G21/C1338 |
|
Resistance to agent chemical |
- |
Stable performance to agent chemical |
- |
|
Ozone resistance |
- |
good |
ASTM D1149 |
|
Aging resistance |
- |
150 hours, slight wrinkles, no cracks, holes or distortion |
- |
Physucal Properties |
Test Method |
Values (English) |
Values(Metric) |
Basis Weight |
Scale |
25.5lbs/1000 ft2 |
125g/m2 |
Tensile Strength |
GB/T12914-1991 |
22.5lbs/inch(MD) |
3.79 kn/m(MD) |
|
|
13.9lbs/inch(XD) |
2.31 kn/m(XD) |
Bursting Strength |
GB/T454-2002 |
36 lbs/psi |
248 kpa |
Water-resitant |
23 °C 24h |
No phenomenon of layered |
No phenomenon of layered |
Low-temperature resistant |
-40 °C 1h |
No phenomenon of layered |
No phenomenon of layered |
High temperature |
116 °C 4h |
No leakage phenomenon |
No leakage phenomenon |
resistant |
|
|
|
Thickness |
Micrometer |
0.0058 inch |
150 micron |
