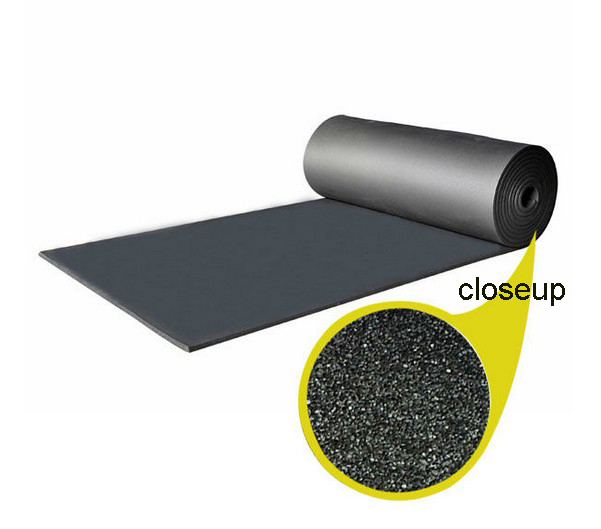

BROADFLEX Rubber foam sheet insulation has passed BS476, FM, SGS, UL, ASTM certificates and we have strict quality management system. With excellent quality, competitive price, prompt delivery, we have exported our rubber foam to over 80 countries.
Spec |
Supply Scope |
Length |
8m-30m |
Width |
1m-1.5m |
Thickness |
6mm-30mm |
Density |
55-70kg/m3 |
Rubber foam sheet has been widely used in construction, textile, pharmaceutical, chemical, metallurgy, shipbuilding and other industries. More concentrated use of the air conditioning system of water, steam pipes to prevent condensation and cold insulation to prevent heat loss, access to a desirable effect.
Packing: In PP and PE plastic bags, OEM service can be offered.
Delivery time: Our powerful production capacity will ensure timely delivery time,
normal 5-7 days is enough!
Property |
Unit |
Value |
Test Method |
|
Temperature range |
°F (°C) |
-297~220(-183~105) |
- |
|
Density range |
Ibs./ft3(kg/m3) |
3.0~6.0(48~96) |
ASTM D 1622 or D1667 |
|
Thermal conductivity |
75 °F mean T (24 °C) |
Btu·in./h·ft2·°F |
0.27(0.039) |
ASTM C177 or C518 |
|
90 °F mean T (32 °C) |
Btu·in./h·ft2·°F |
0.276(0.040) |
|
Water vapor permeability |
Perm-in (kg/m ·s ·pa) |
0.08(1.16 X 10-13) |
ASTM E96 procedure A DIN 52615 |
|
Flame spread and smoke developed index |
|
Class 1 & Class 0 |
BS476 part 7 & part 6 |
|
|
|
V0 |
UL94 |
|
Water absorption, by volume |
% |
0.2 |
ASTM C209 |
|
Mold growth |
- |
Meet requirement |
UL181 |
|
Bacterial resistance |
|
Meet requirement |
ASTM G22 |
|
Fungi resistance |
|
Meet requirement |
ASTM G21/C1338 |
|
Resistance to agent chemical |
- |
Stable performance to agent chemical |
- |
|
Ozone resistance |
- |
good |
ASTM D1149 |
|
Aging resistance |
- |
150 hours, slight wrinkles, no cracks, holes or distortion |
- |
|
