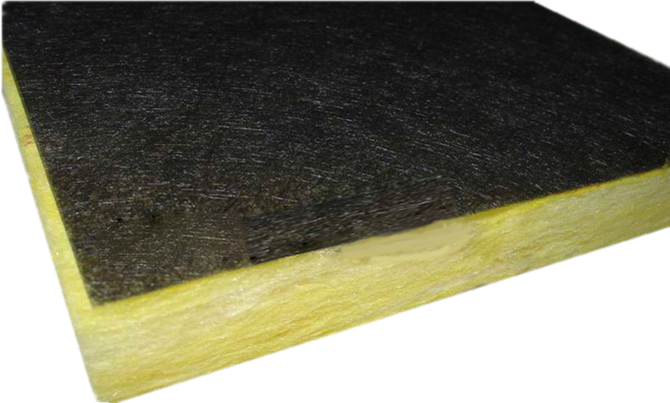

BROAD glass wool board are made from superfine glass wool felt with addition of phenol resin cementing agent forming shapes through solidification under pressure and heating. These products are characterized by their light weight,high deadening coefficient,remarkable fire resistance and stable chemical property.
This black tissue facing helps to increase the strength of glass wool board.
Spec |
Supply Scope |
Length |
1.2m |
Width |
0.6m, 1.2m, 2.4m |
Thickness |
25-200mm |
Density |
24-100kg/m3 |
Good Fire-proof performance.
Excellent Damp-proof property.
Excellent rebound property , When reaches the destination will rebound almost to the original level in 24 hours after been unpacked .
Low moisture absorption; stable physical properties.
Sound absorption and noise reduction; it can effectively prevent sound from spreading.
Non-poison , Easy for construction; cutting at will.
item |
unit |
index |
measured value |
remarks |
bulk density |
kg/m3 |
24-100 |
24-100 |
GB/T 13350-2000 |
average diameter of fibers |
m |
< 8.0 |
4.0-6.0 |
GB/T 13350-2000 |
moisture resistivity |
% |
> 98 |
> 98.5 |
JISA9512-2000 |
thermal conductivity |
W/m.k |
0.049-0.042 |
0.045-0.032 |
GB/T 13350-2000 |
incombustibility |
|
incombustible |
up to standard (Grade A) |
GB/T 13350-2000 |
sound absorption coefficient |
|
|
1.03product reverberation positioning 24kg/m3 2000HZ |
GB/J47-83 |
Max. working temperature |
|
400 |
410 |
GB/T 13350-2000 |
Packing: PE. Different colors and OEM are available!
Delivery time: our powerful production capacity ensures the shortest delivery time, normally 5-7 days is enough!
